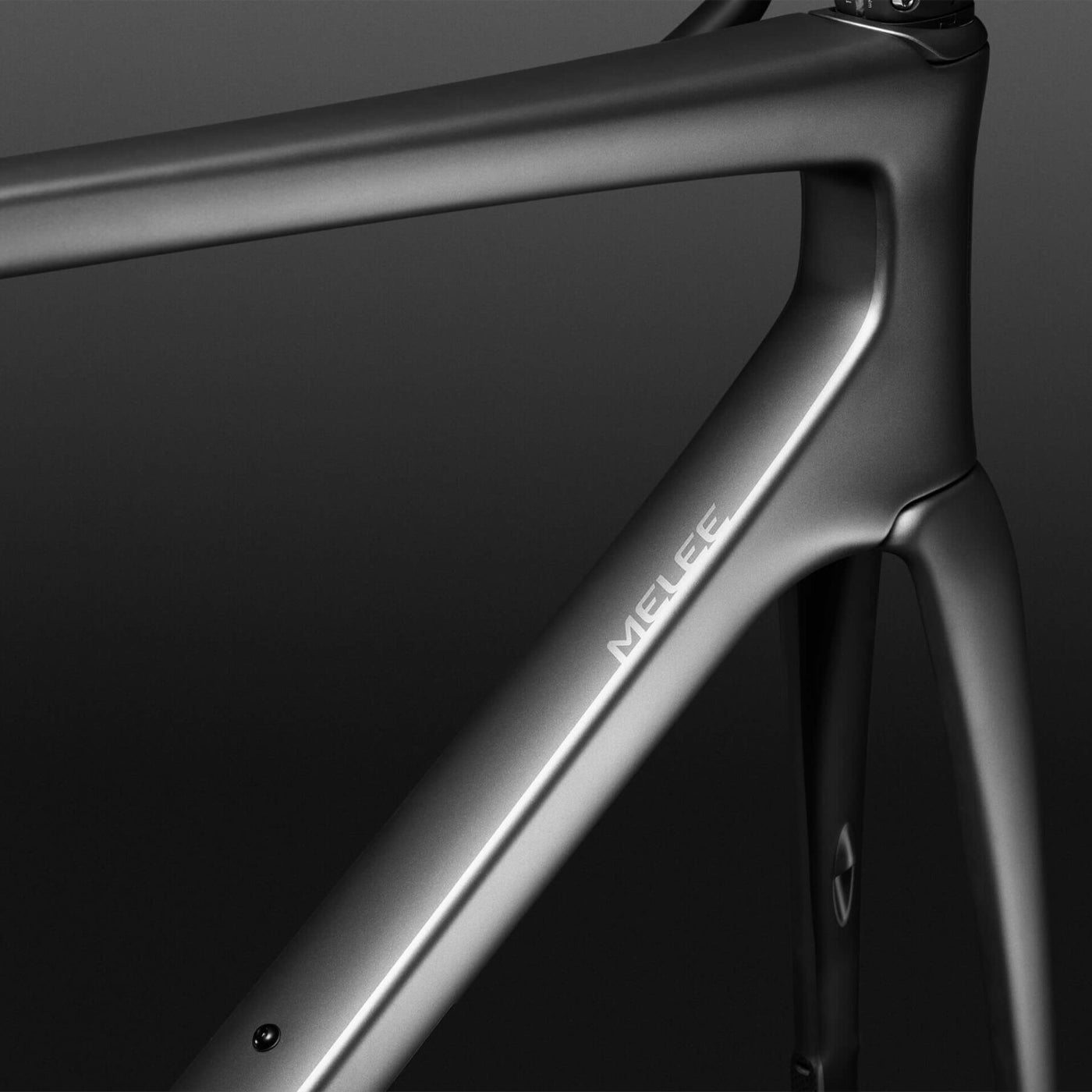

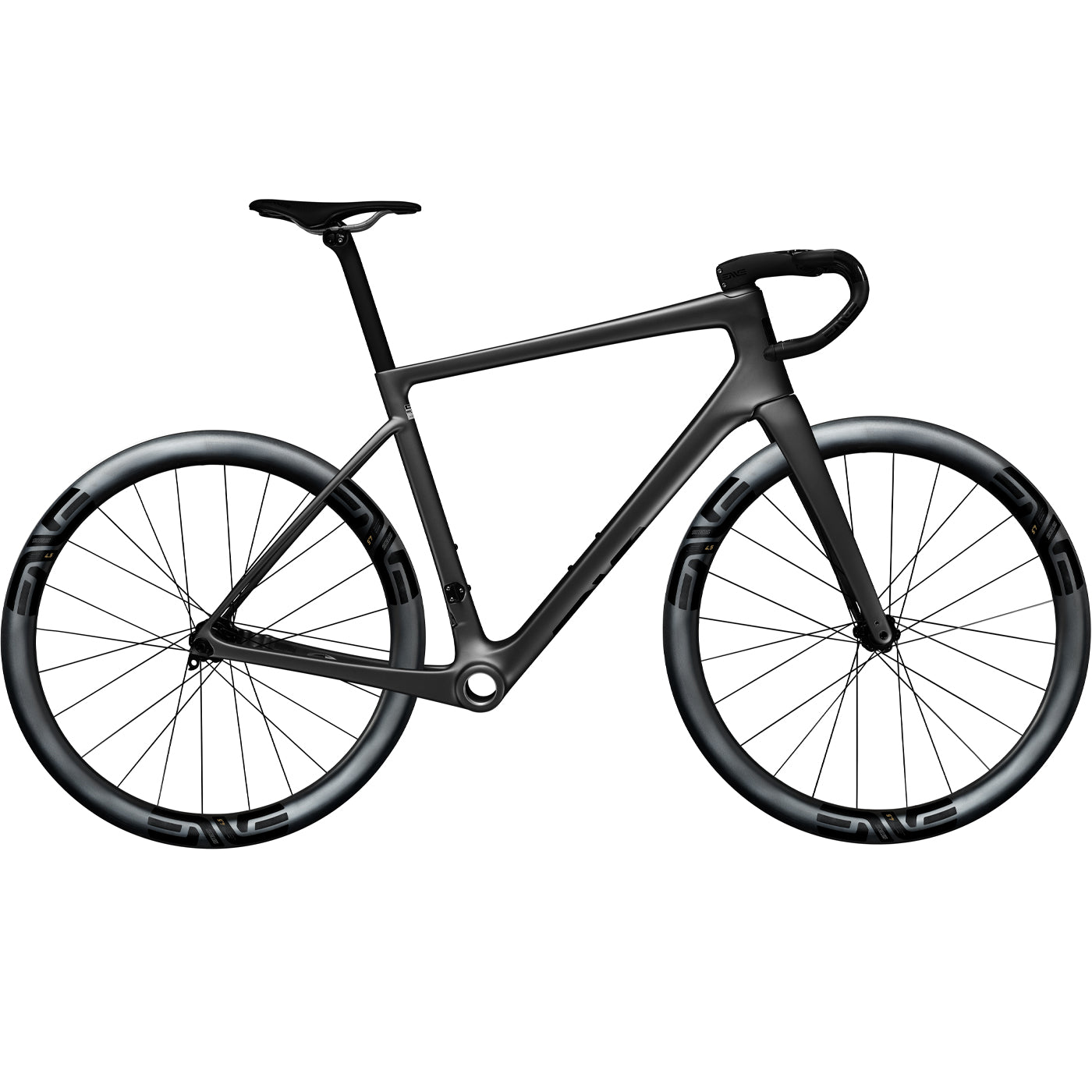

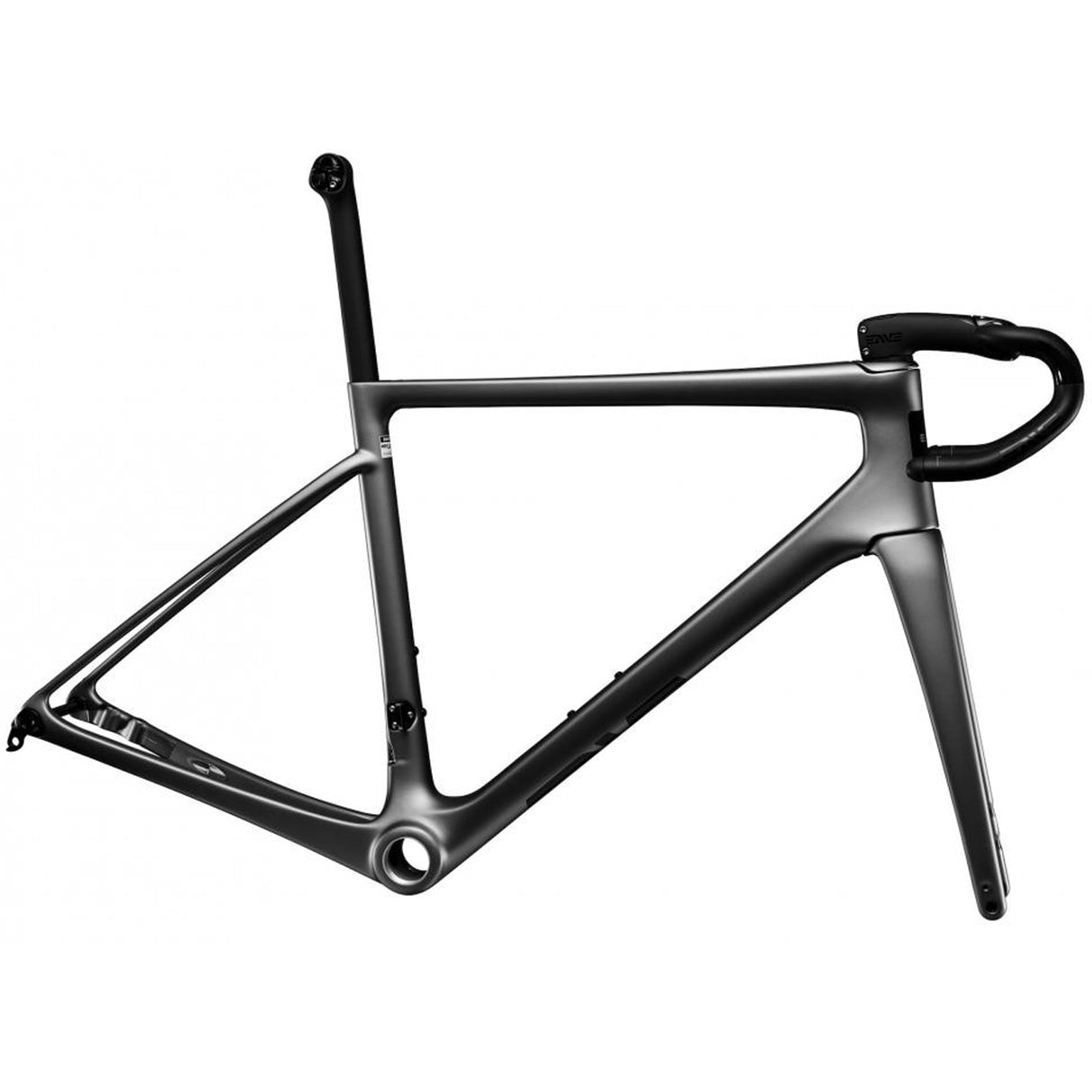

Enve Melee frame - Grey

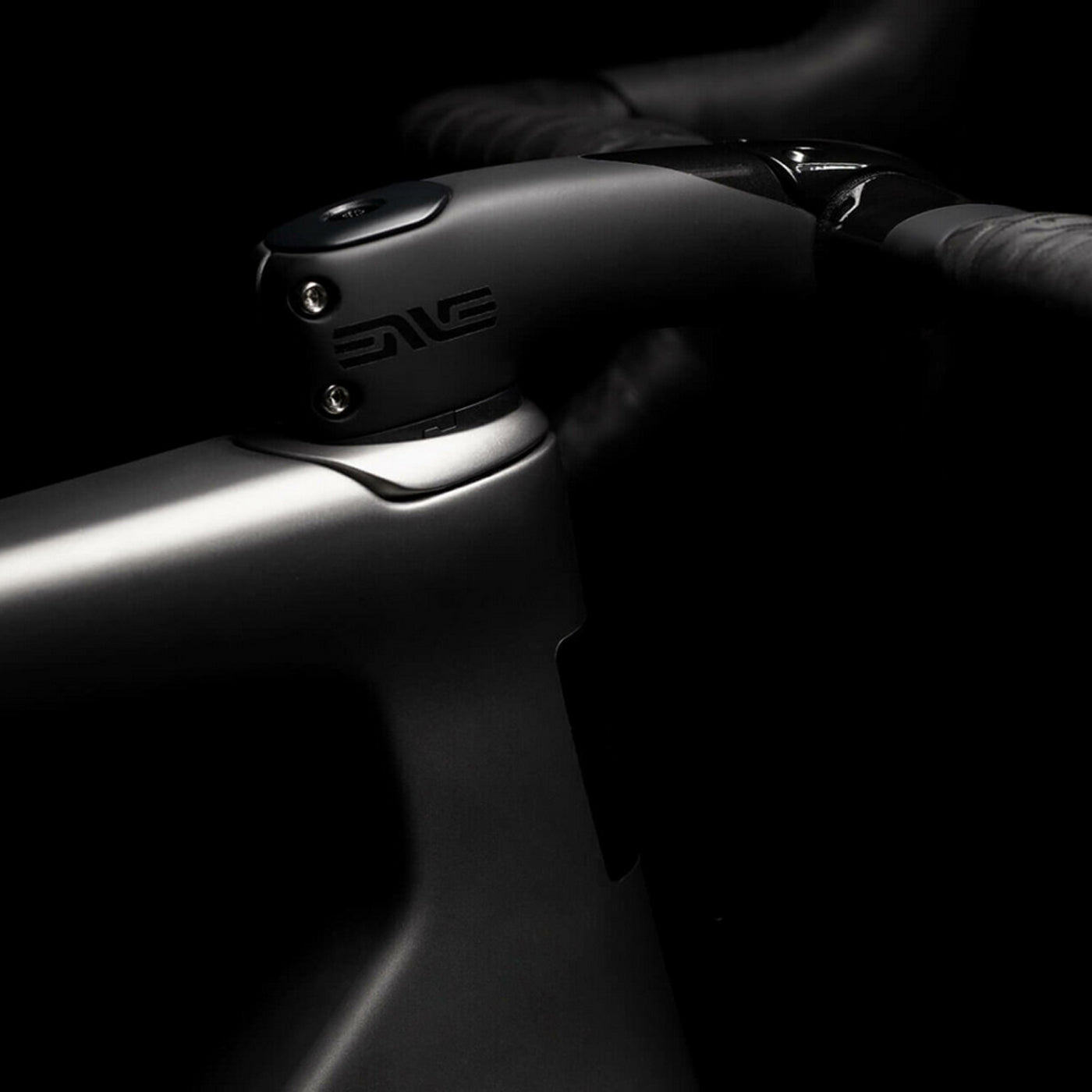

Enve Melee frame, with an optimized geometry around 27 to 32 mm tires, the Melee increases versatility with the possibility of mounting tires up to 35 mm, allowing you to develop your apple to meet the needs of the day. You need a solid fit and refined geometry to give you the safety and comfort necessary to take advantage of the performance of your bike. The integrated front-end Instracts the cables and the flexible tubes through the bar, the handlebar attack and the steering series, where they are fixed using the ENVE anti-row finish, allowing them to remain silent, hidden from vision and shelter from the wind. Developed in CFD and in the wind gallery, the Melee has forms of the refined pipes that have been developed to complete our forms of the SES ™ circle and offer aerodynamic performance that are real-world Fast ™. Additional features such as the integrated front-end are added to the slippery design of Melee.

• Frame: ENVE M.O.D Carbon, Passante 12x142 pivot, flat assembly disk, Central Movement T47 Threaded, internal milling, compatible with a mudguard.
• Forcella: ENVE M.O.D Carbon, 12x100 passing pin.
• Target: Road Race/Performance.
• Chassis weight: 850g +/- 2% (size 56, Painted, no hardware).
• Headset: Integrated ENVE IS52/IS52 Drop-in internal.
• Steering series Bearing: 1.5 "IS52 Superior and lower.
• Reggisella diameter: ENVE AERO.

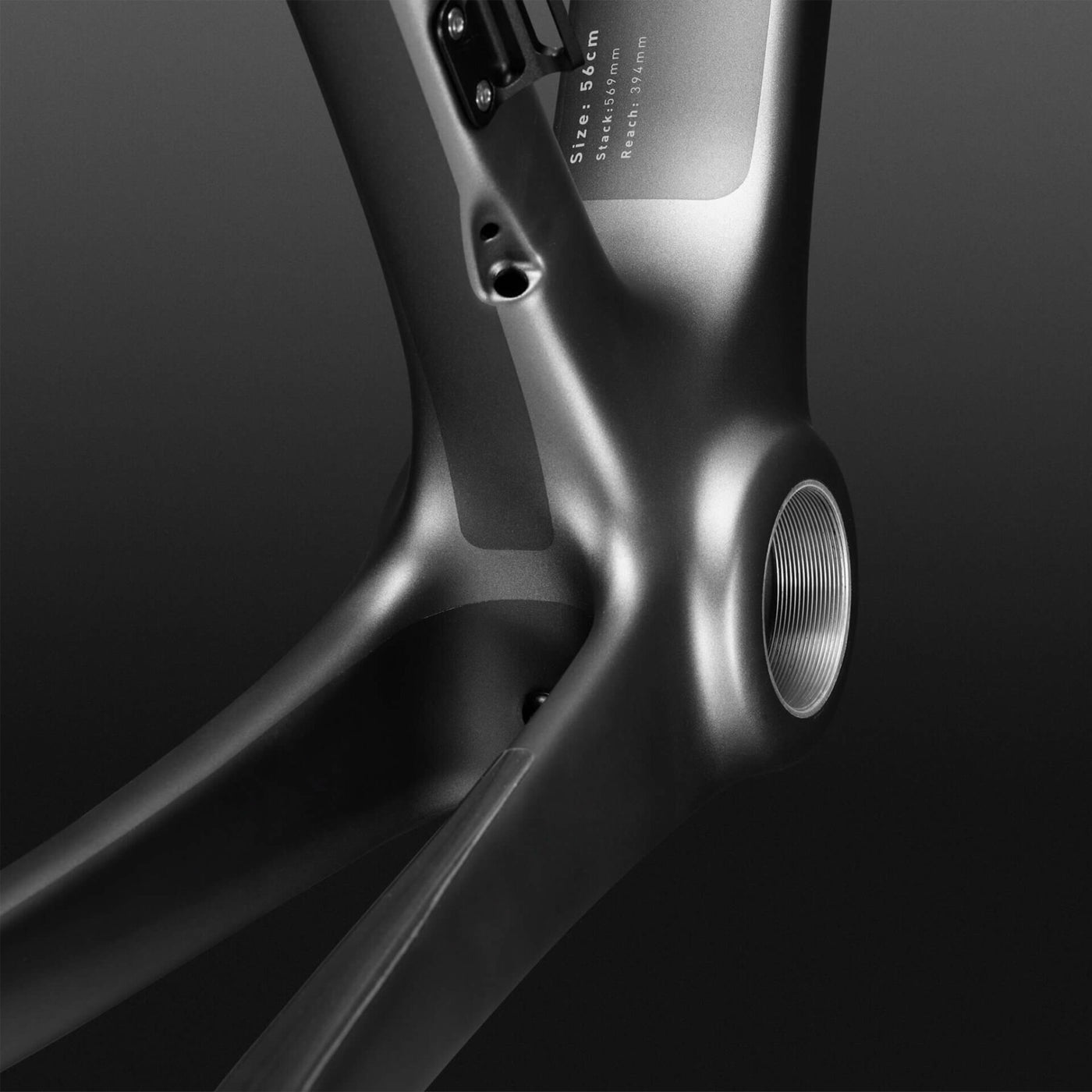

• BB Type: internal bearing T47.
• Brake support: flat mountain.
• Front Axle: 12x100 (Total Length: 122, TP: 1.5, TL: 15).
• Rear Axle: 12x142 (Total Length: 168, TP: 1.0, TL: 14).
• Minimum tire size: 27C-32C.
• Maximum distance of the tires: 35c.
• STRIPLE CAVI of the frame: Interior.
• Compatible with mudguard support.
• Compatible with group: electronic and mechanical shimano, SRAM Axs (1x/2x).

In the chassis kit included:

• Handwalk: SES AR Integrated Compact 40/45cm in size 54.

• Handwalk: SES AR Integrated Compact 42/47cm in size 56.
• Handbridge attack: OEM int aero Road 100mm -7deg in size 54.

• Handbridge attack: Oem int aero Road 110mm -7deg in size 56.
• Reggisella: OEM Aero 350mm Omm Offset in size 54/56.
